Hiab Craine Shipping Container Transport

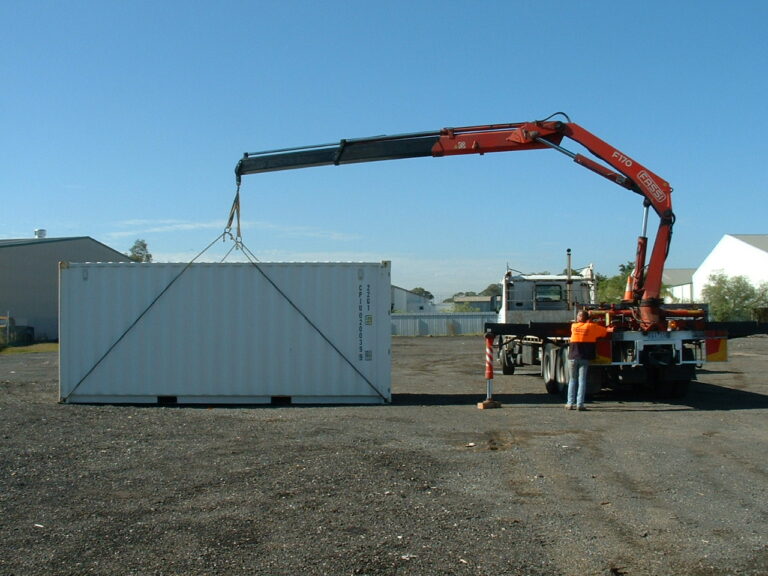

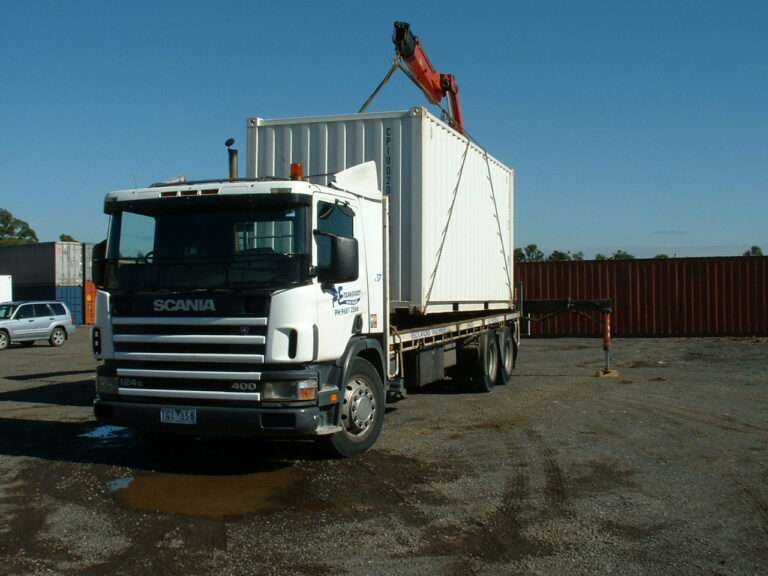

This delivery method uses a truck mounted crane. The vehicle pictured has the crane mounted on the rear, some vehicles have the crane mounted just behind the cab, but for container deliveries it is best to use rear mounted. This method is best suited where there is limited space in front or behind the truck where the container is to be located. It is also the best way to position a container at an angle to the delivery truck (e.g. 90 º, 45°, etc. See picture 3 & 4) or up on a platform/raised area, over colourbond/chain wire fences etc. The truck can off load the container to either side or the rear of the truck.

  • Most transport companies don’t like to take their vehicles off road. If delivery is into an area where the ground isn’t sealed or compacted / hardstand, the driver will inspect the area and make a judgement whether or not to proceed. If the vehicle becomes bogged / stuck you will be liable for the recovery cost. So it’s a good idea to make sure you identify any soft or wet areas, old rubble drains, recently excavated / filled areas etc. then advise the driver of their location. Also have an alternate site to place the container in case the driver won’t go off the compacted surface.

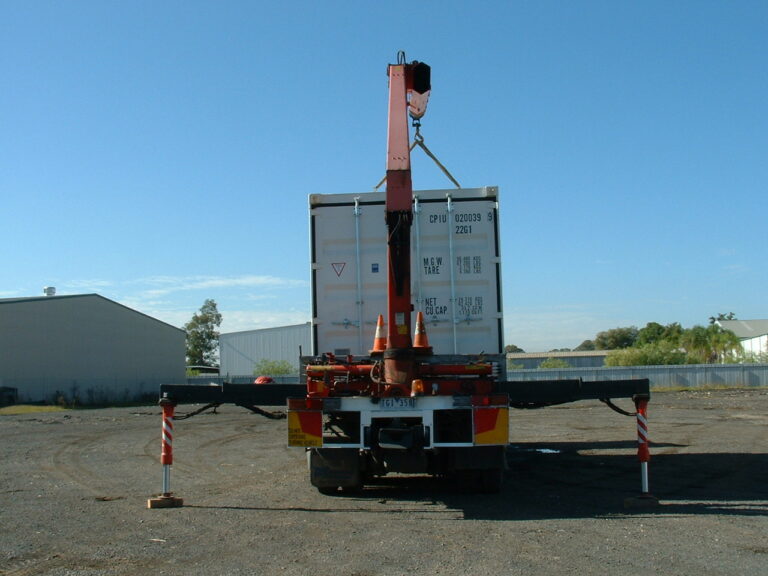

When the container is being offloaded, the truck needs to extend outrigger legs to either side of the truck for stability (picture 2). The vehicle in these photos is able to deliver 10’ & 20’ containers, 40’ containers can be delivered in the same method, but with a semitrailer/articulated truck rather than a rigid body truck. Due to the extra weight and reach, there are more restrictions when delivering 40’ containers.

There are several points that need to be considered when using this type of truck for delivery:

  • The height of the container on the truck is 4.2m. You need to allow at least this height when going under powerlines/ trees, eves of houses/factories or through doorways.
  • Even though the container is 2.44m wide, the truck and mirrors etc. need an opening of at least 2.9m.
  • The lifting arm needs approx. 6.5m in height while unloading. This needs to be considered when unloading near/under powerlines, trees or inside factories.
  • The truck will need at least 3 to 4 metres clear space in front to manoeuvre to drive away after unloading.
  • The land where the truck parks to unload needs to be relatively level, slightly sloping is okay.
  • Most transport companies don’t like to take their vehicles off road. If delivery is into an area where the ground isn’t sealed or compacted / hardstand, the driver will inspect the area and make a judgement whether or not to proceed. If the vehicle becomes bogged / stuck you will be liable for the recovery cost. So it’s a good idea to make sure you identify any soft or wet areas, old rubble drains, recently excavated / filled areas etc. then advise the driver of their location. Also have an alternate site to place the container in case the driver won’t go off the compacted surface.
Ship Full of Containers

Browse our range of containers on our website, or if you have a special requirement,

Please phone our sales office on (02) 9723 6004
to discuss how we can assist.

Frequently Asked Questions

I just need a small container for my backyard, is this possible?

Yes, Container Options provide a range of sizes in shipping containers. The smallest size is 6ft, which is perfect for household or garden storage. 8ft & 10ft containers are also available for sale & hire.

Are your containers safe for export?

Most certainly! Container Options is a leading, trustworthy company that provides shipping containers which are cargo worthy, safe and of international standards. We also offer export certification for your container.

Will you deliver to my site?

Yes, Container Options delivers directly to you onsite using various self-unloading trucks through our network of contractors. Our delivery is safe and on time without any hassle for the client.

I’m on a tight budget, what options do you have?

Container Options offers new or used containers for sale or for hire to accommodate for small to large budgets, depending on your needs and financial resources.

How do I know if my goods will be safe?

We offer slimline lock boxes, padlocks and anti-tampering high security kits that can be purchased as added accessories for your shipping container. These safety measures will protect your valuables from thieves and bolt cutters. With our lockbox, the padlock is securely hidden within the box, making it very difficult for anyone to remove it and break in.

If I hire a container in Sydney, will you pick it up when I’m done?

Yes, at the start of your hire you will pay for the first month’s hire, delivery and return transport up front, so at the end of the hire you just have to let us know you are ready for your container to be picked up and we can quickly organise the relevant truck to come out to site and remove the container with no extra fees!
